Sun visor
Air conditioning
Power windows
Roof hatch/vent
Tires: 315/70 R 22.5

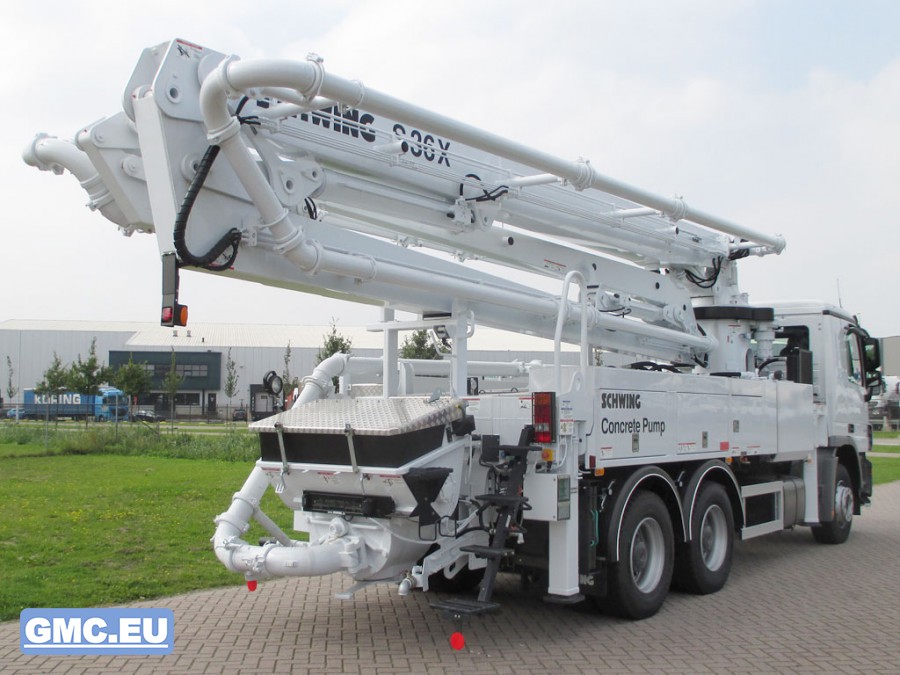

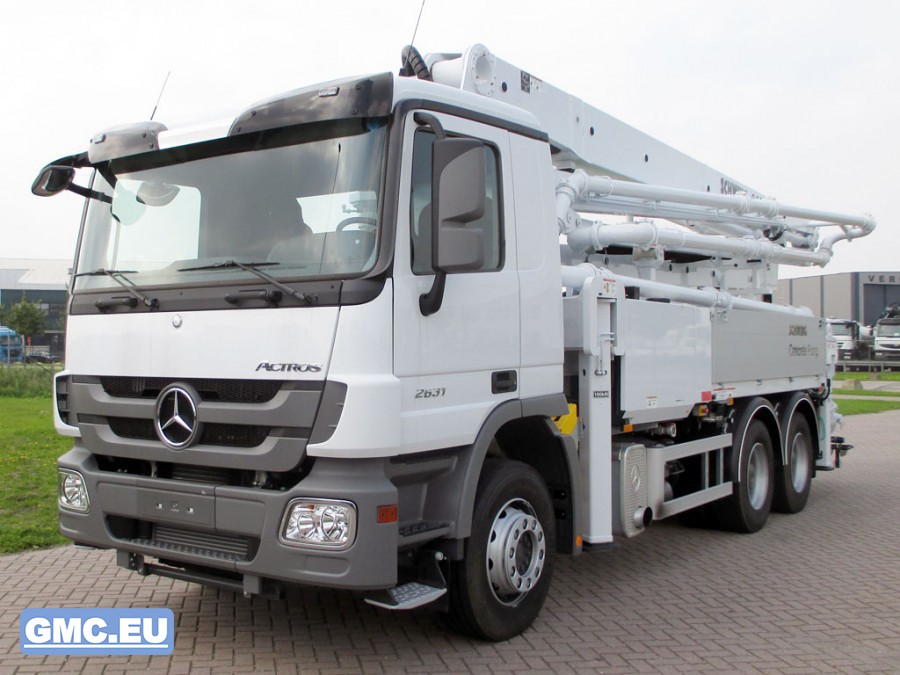

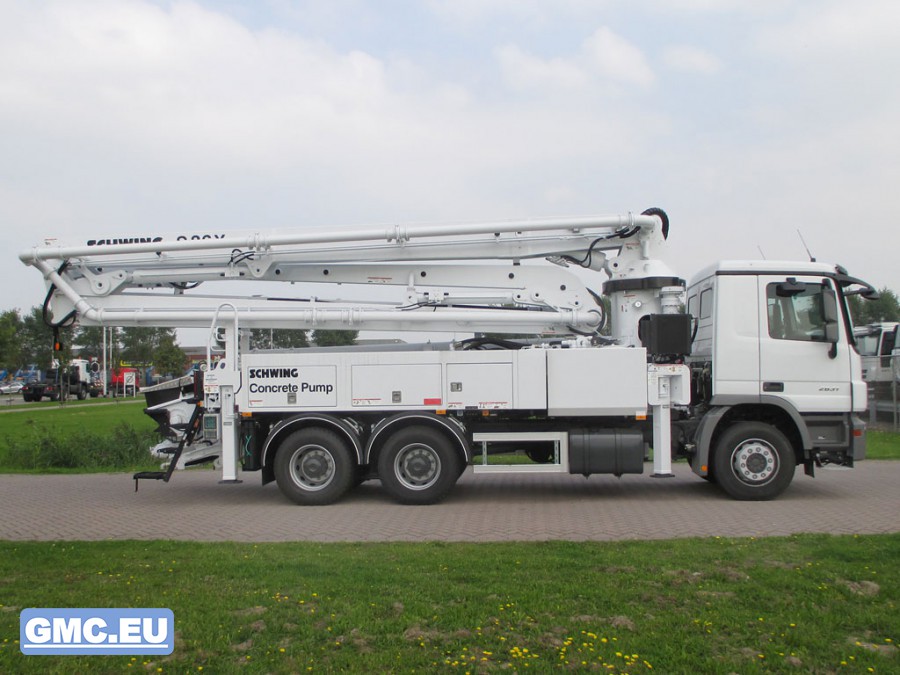

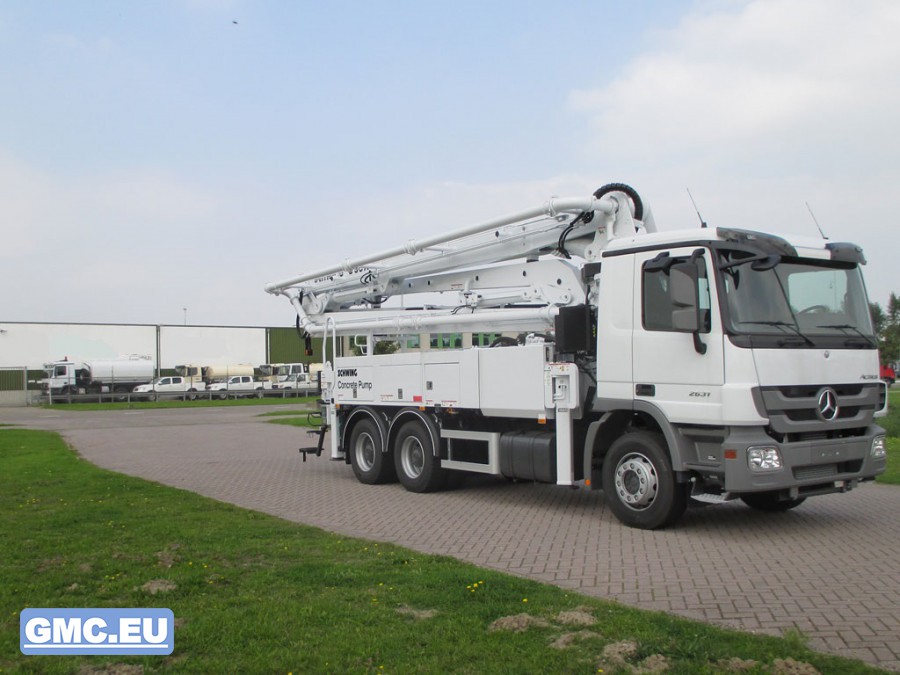

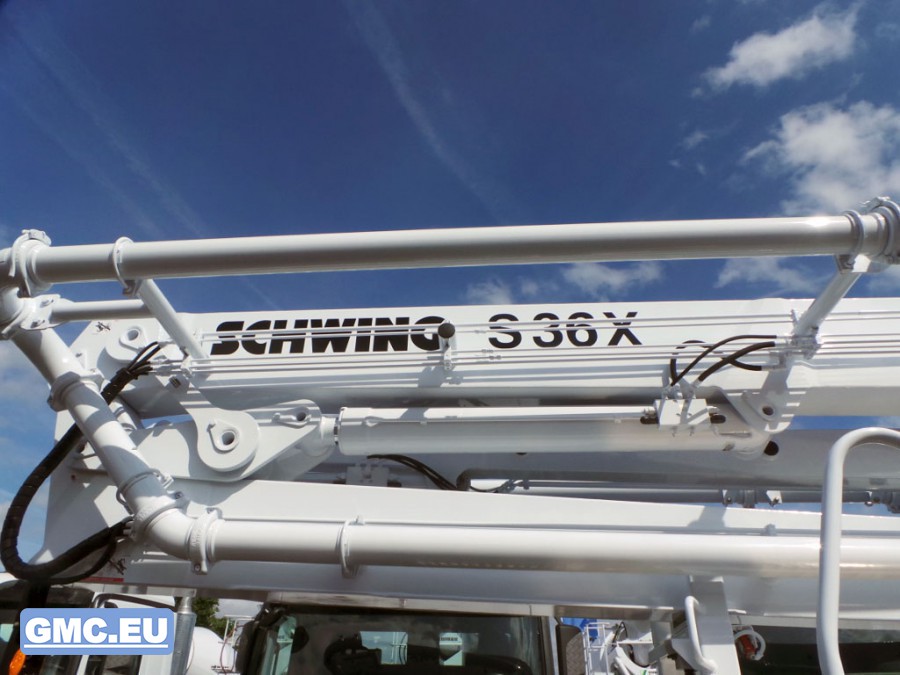

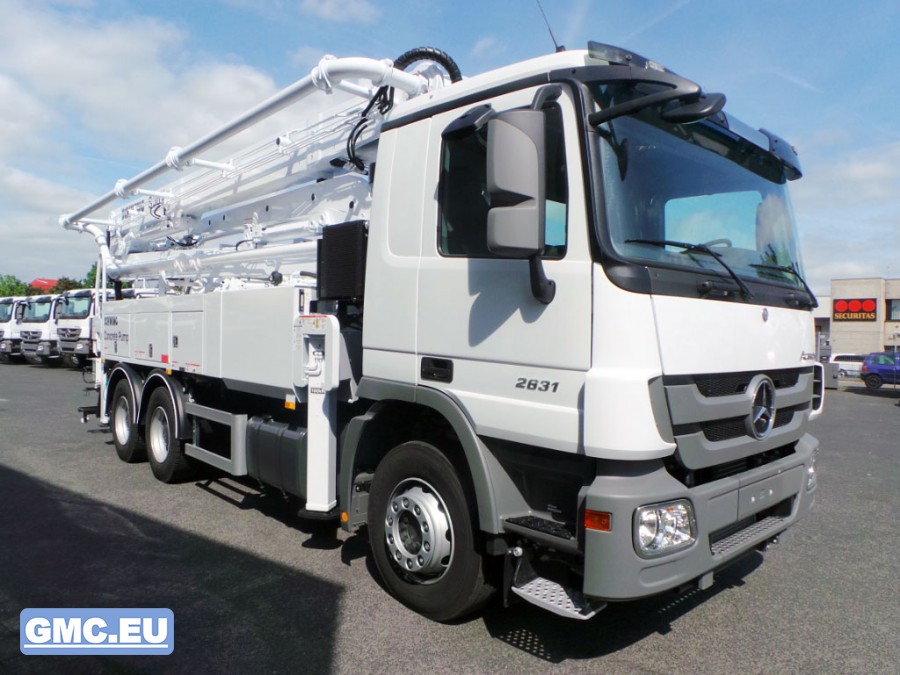

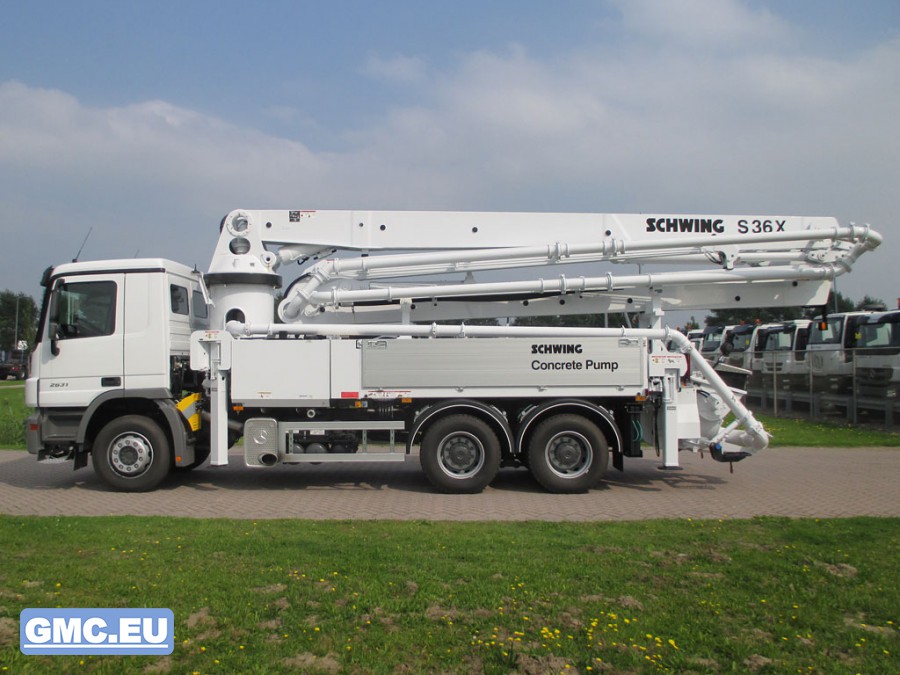

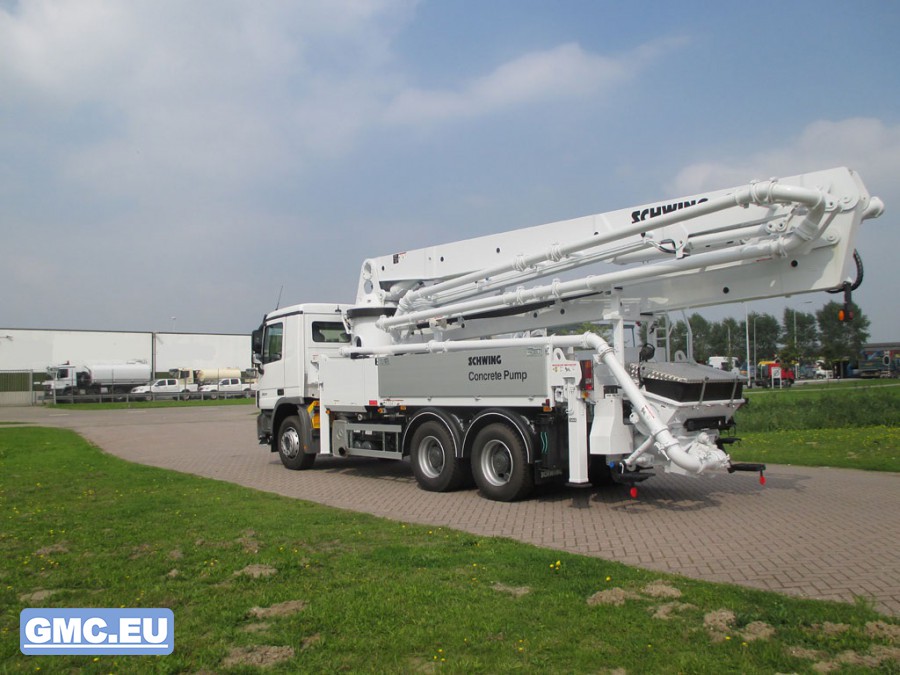

SCHWING S-36-X concrete pump
Dia. of pipeline mm 125
Number of arms 4
Vertical reach m 35,3
Horizontal reach from centre of slewing axis m 31,3
Slewing range 2x 370 degrees
Length of end hose m 4

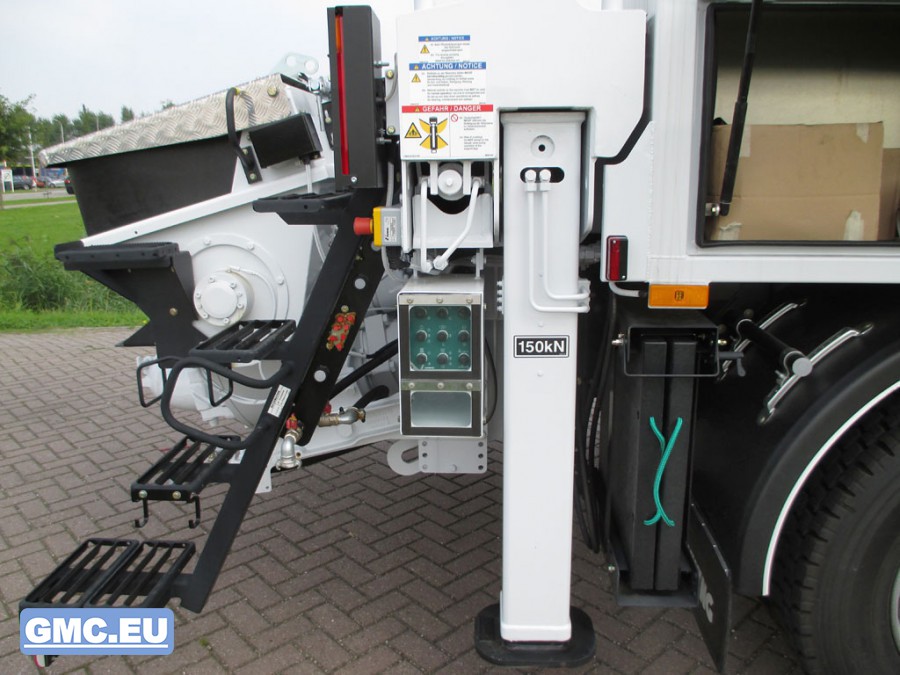

Outriggers front and rear:
vertical and horizontal hydr. telescopic
Standard scope of supply

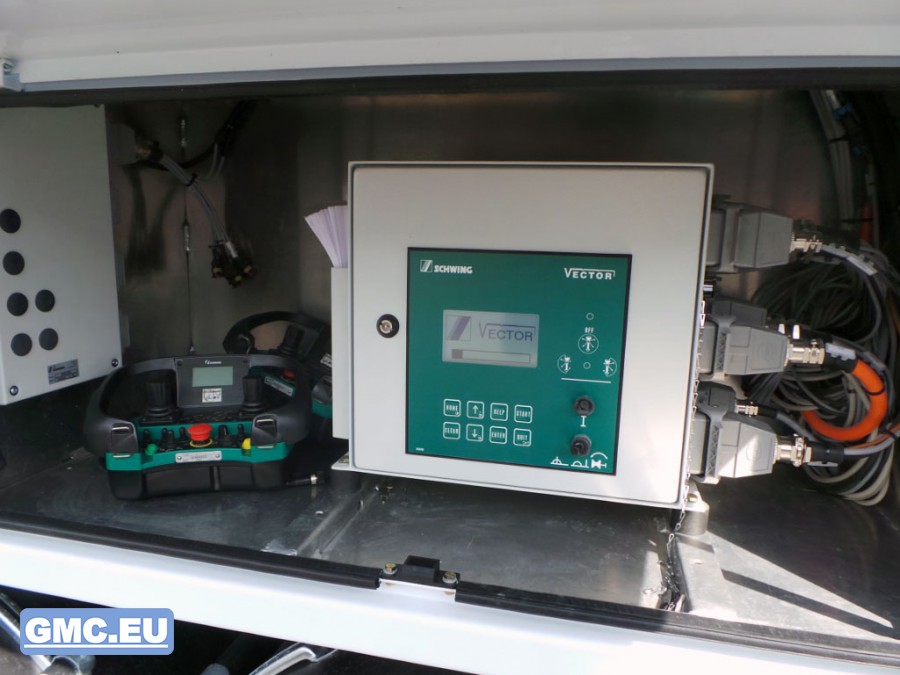

VECTOR-Control System
MPS-Control (standard > 380 l drive)
X-type outriggers
Hopper with agitator and hopper cover
Folding side-board left
PE – watertank 420 l
Water system (Roller/C-connection front)
Pressure water connection rear right
Water box filling from below at the rear
Oil filling
Oilcooler (reinforced version)
Central lubrication strip (Rock/agitator)
Spot light at hopper left
Baseplates with rack
Reversing lamp both sides
Working hour meter

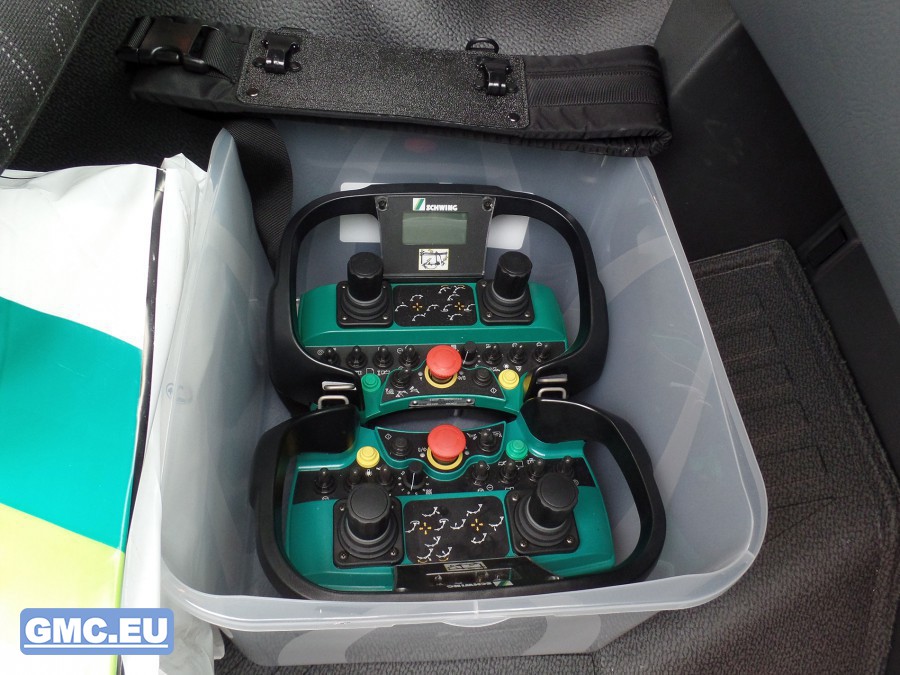

Proportional radio remote control
Water hose 15 m
Tool box (right hand side)
Standard accessories
Agitator operation from right hand side
Agitator “on/off” (manually and via remote control)
Engine speed adjustment (manually and via remote control)
Horn actuation at hopper
“Emergency off” button
Engine “on/off” (manually and via remote control)
Output adjustment (manually and via remote control “0-max”)
Communication horn (manually and via remote control)

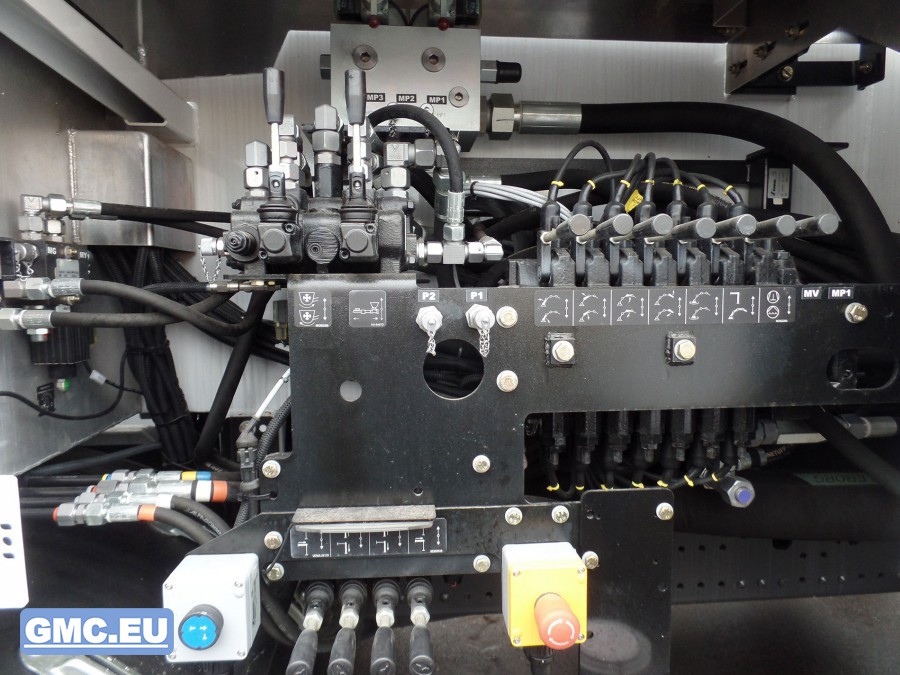

Manual control panel rear
Documentation: operating instructions, spare-parts books
EC conformity declaration
The product fulfils the relevant health and safety regulations of the EC machinery guidelines.
The machinery is labelled with the EC-identification (CE).
Optional Equipment
Vibrator, electrically driven
Cable remote control with 15 m connection cable and 3 boom control levers
