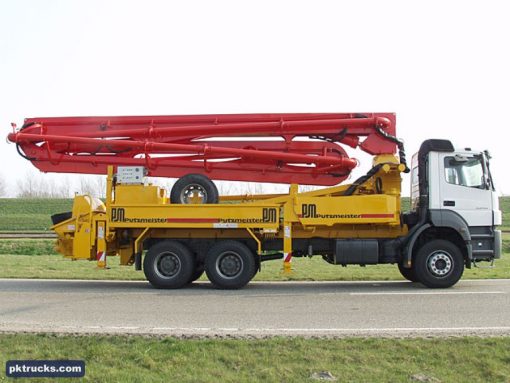

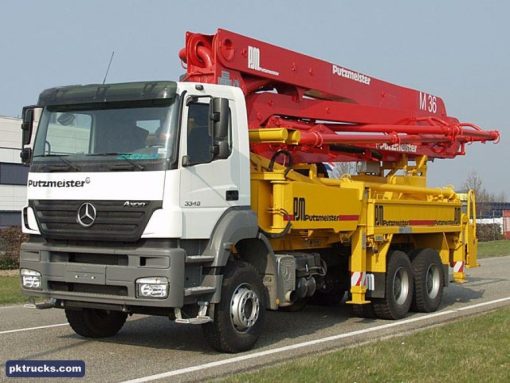

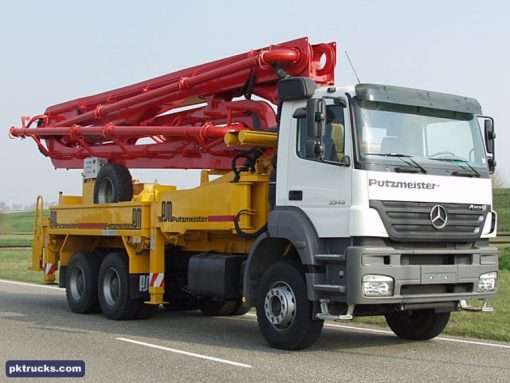

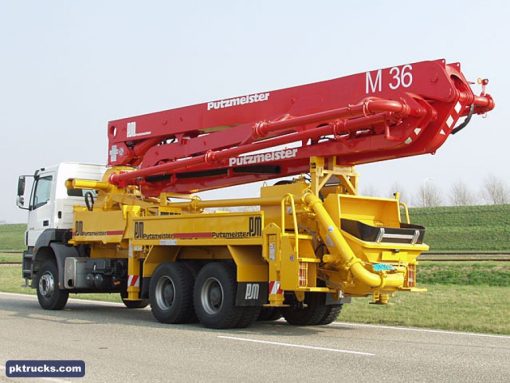

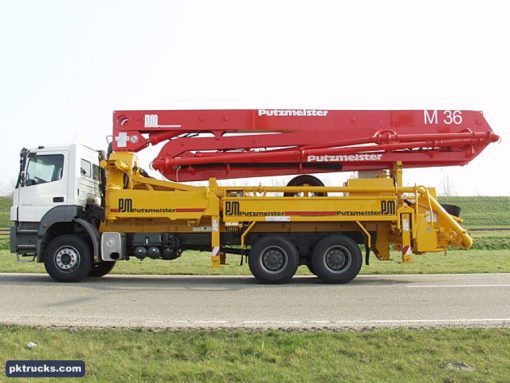

PUTZMEISTER BSF 36.09 TRS 36 mtr. concrete pump mounted on MERCEDES 3340 AXOR chassis - NEW

Max. theoritical concrete capacity: 90 m3/h
Max. theoritical concrete pressure: 78 bar
Delivery cylinder stroke: 1400 mm
Concrete valve: 'S Valf 2018
Water pump: 160 ltr/min
Water tank: 700 ltr, 10 mtr. hose with fittings
Concrete hopper: RS 905
Registered SN control and FFH (Free flow hydraulics)
Closed circuit control system
Lubrication:
Automatic lubrication for concrete pistons
Standard lubrication from the one point of S-tube
Cylinders in hopper
Concrete cylinder: 230 mm chrom coated
Pump types: Main pump Rexroth A4VG125
'S Valf a10 V28 - A10 V21 Rexroth
Boom A2 F32 Rexroth or A2F16 Rexroth
Agitator pump BOSCH R 14 cm3
Electric box: Unique box water proof proportional
Piston direction change system: Proximity switch
Boom section
Boom no. 670200982
Vertical reach: 36 mtr. (without end hose)
Horizontal reach: 32 mtr. (without end hose)
End hose: 4 m single flanged
Pedestal type: TRS 65
Depth of reach: 23.7 mtr.
Unfolding height: 8.7 mtr.
Slewing circle: 365 degrees
Slewing speed: 0.43 RPM
Delivery line diameter: 125 mm
Front and rear legs: Hydraulic, (sleewing type)
Distance between front legs: 8.5 mtr
Distance between rear legs: 4.0 mtr
Delivery pipes: inner diameter 125 mm
Outer diameter 133 steel
5 1/2" flanges 148 mm
40 mtr. length cable, remote control
Radio remote control including proportional CPC
